Overview



JG series axial piston pump (old-style variable type) is a new generation of CY type axial pump newly developed by our factory. It contains the original variable type of the original CY pump, so it is called the old-style variable type. In addition to the advantages of axial piston pumps, it also has the following advantages:

1. The friction pair adopts new materials, the pump has high efficiency and longer life;

2. Reduced the flow rate of the oil suction channel of the pump, so that the self-priming ability of the pump is greatly improved, and the speed is high;

3.Low noise: a number of noise reduction measures have been adopted in the pump design;

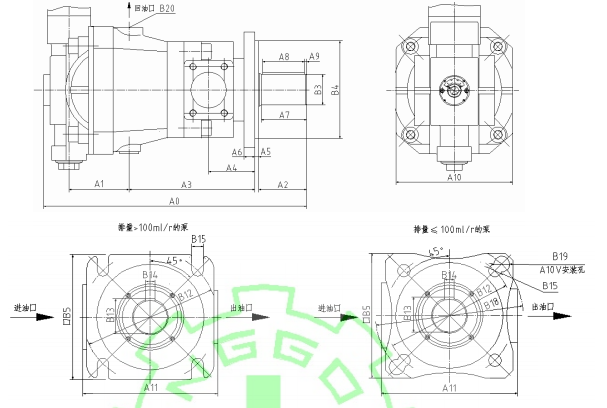

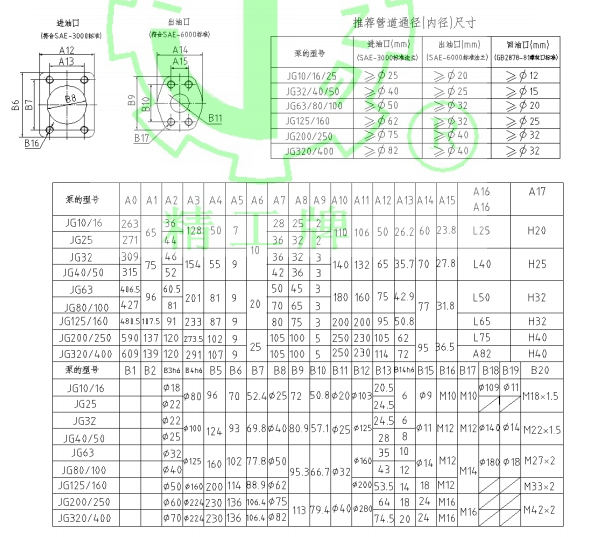

4. In order to meet the requirements of economic globalization, the installation and connection dimensions of this series of pumps adopt international standard installation dimensions. The displacement of 10-100ml / r pumps is also the same as that of Rexroth A10VSO displacement pumps; the displacement is 100ml / r. The above pumps are consistent with the corresponding displacement pumps of Rexroth A4VSO;

5.The inlet and outlet flanges adopt SAE standards;

6.Suitable for open oil circuit;
